Steel Truss Dock Hinge Connector Plates
Simplify the process of creating hinged connections between your truss dock sections using our convenient Male/Female Truss Hinge Connector Plates. These plates allow for easy articulation and flexible layout options for your truss-style dock system.

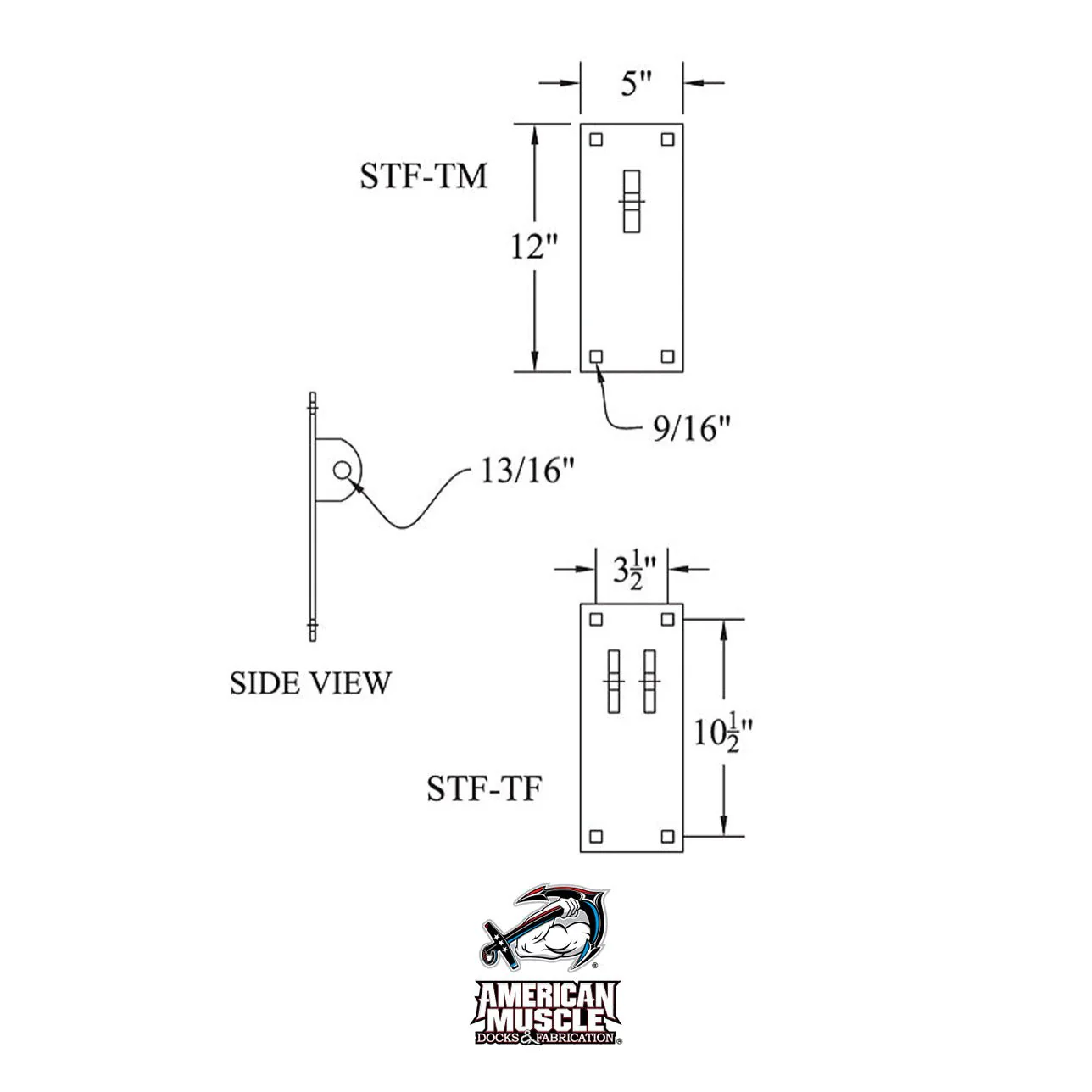

- ¼” x12”x 5” Base Plate
- 9/16” Square Mounting Bolt Holes
- 3.5”x 10.5” Bolt Hole Centers
- Male: 1(x) ¾” Male Tab, 13/16” Hole
- Female: 2(x) ½” Female Tabs, 13/16” Holes
- Galvanized Coated
STF-TM - Male Plate - 5.3 lbs.
STF-TF - Female Plate - 5.73 lbs.
NOTE: Used with the F-PIN34 Connector Pin (sold separately).
Also available in a Double Male/Female Plate option.
Original: $24.00
-65%$24.00
$8.40
Description
Simplify the process of creating hinged connections between your truss dock sections using our convenient Male/Female Truss Hinge Connector Plates. These plates allow for easy articulation and flexible layout options for your truss-style dock system.
- ¼” x12”x 5” Base Plate
- 9/16” Square Mounting Bolt Holes
- 3.5”x 10.5” Bolt Hole Centers
- Male: 1(x) ¾” Male Tab, 13/16” Hole
- Female: 2(x) ½” Female Tabs, 13/16” Holes
- Galvanized Coated
STF-TM - Male Plate - 5.3 lbs.
STF-TF - Female Plate - 5.73 lbs.
NOTE: Used with the F-PIN34 Connector Pin (sold separately).
Also available in a Double Male/Female Plate option.
