HD Square Hoop Pile Guides (Rubber)
Get smooth, protective guidance that lasts. Our external square hoop pile guide is engineered for superior durability and equipped with four non-marring rubber rollers to prevent scuffing and wear on your pilings.
- Mounting Angle: ¼” x 24.5”
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe, 2” x 2” 3/16” Square Tubing
- Galvanized Coated

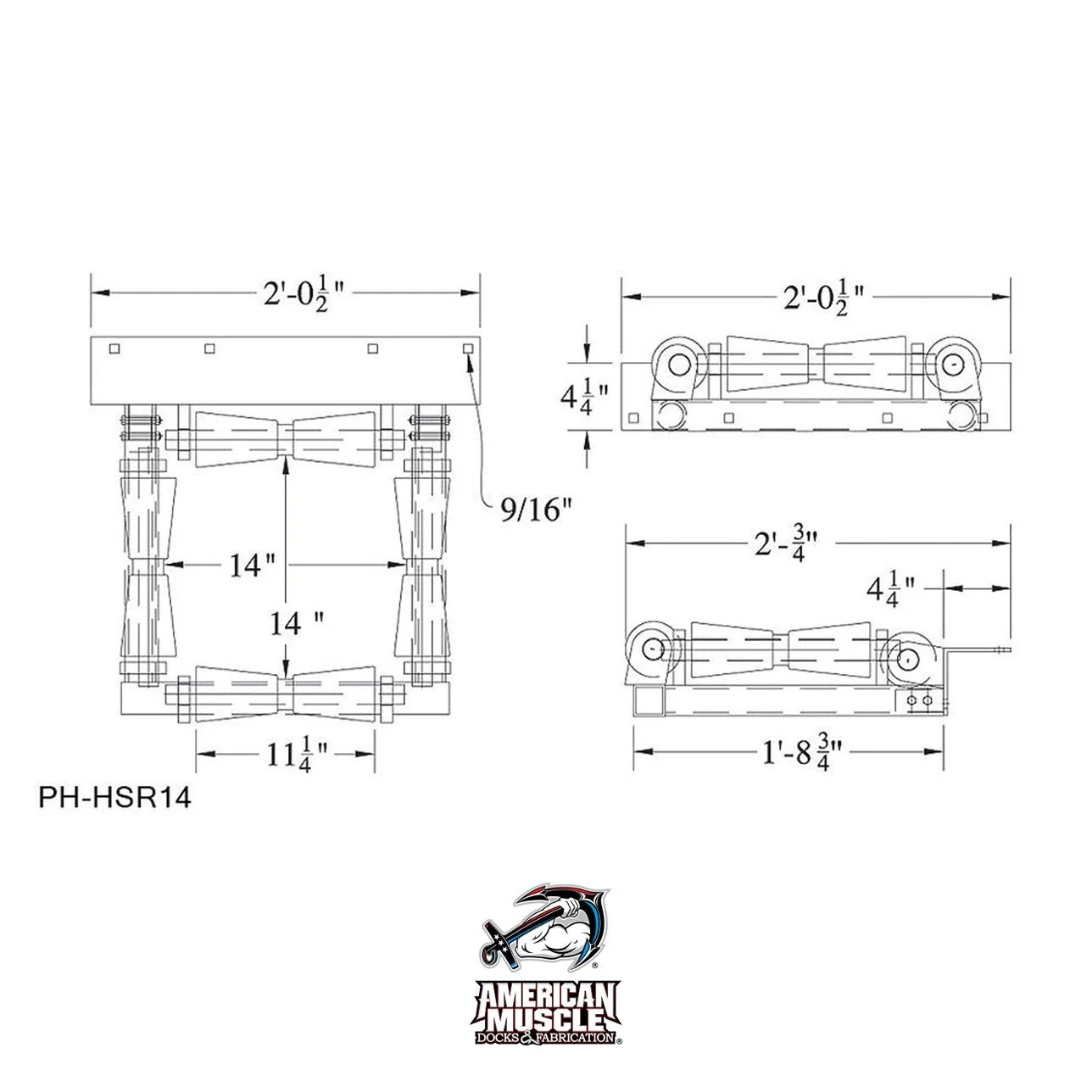

PH-HSR14 - Recommended for 12” Pile - 81 LBS

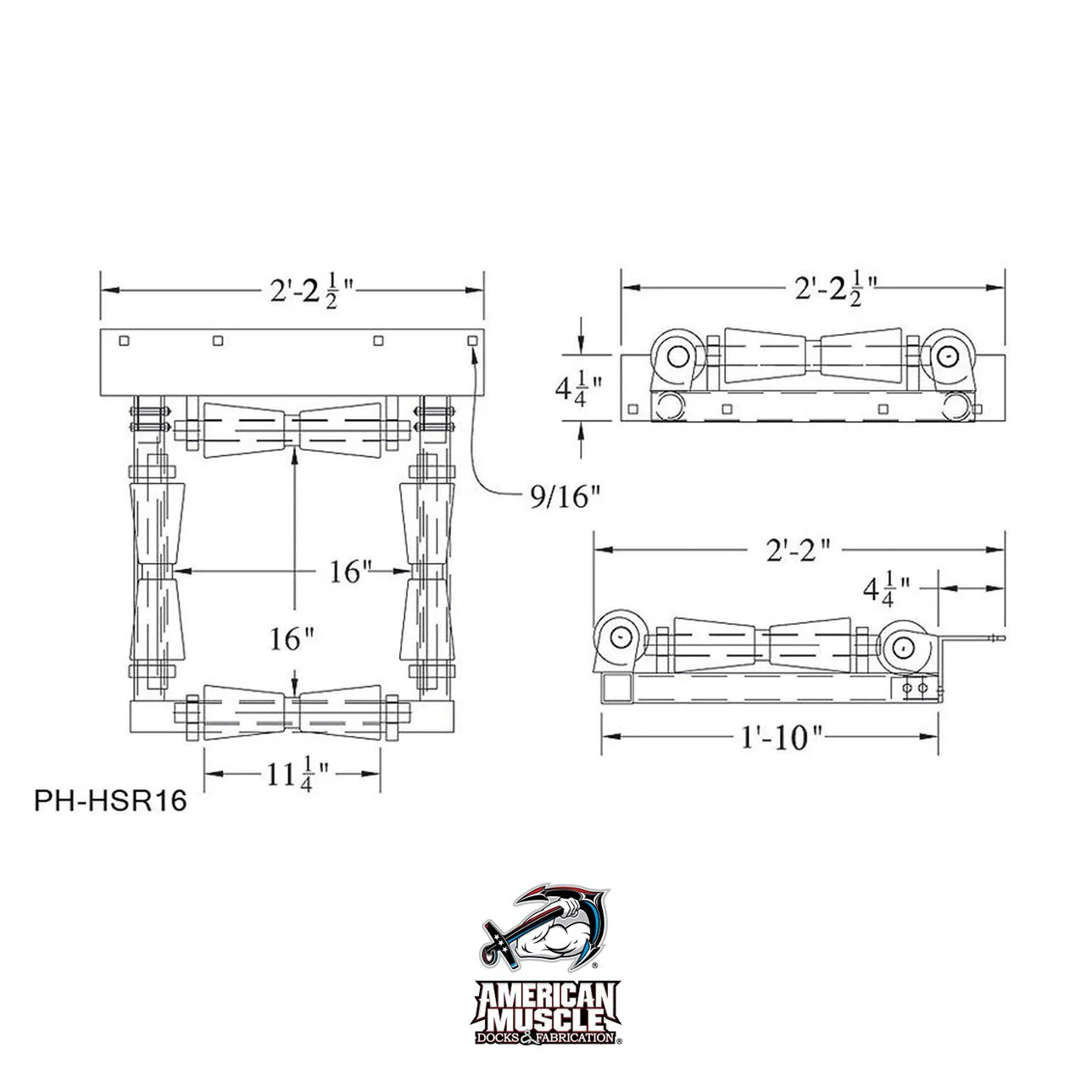

PH-HSR16 - Recommended for 14” Pile - 84 LBS
Select Select Size
From $352.00
HD Square Hoop Pile Guides (Rubber)—
$352.00
Description
Get smooth, protective guidance that lasts. Our external square hoop pile guide is engineered for superior durability and equipped with four non-marring rubber rollers to prevent scuffing and wear on your pilings.
- Mounting Angle: ¼” x 24.5”
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe, 2” x 2” 3/16” Square Tubing
- Galvanized Coated
PH-HSR14 - Recommended for 12” Pile - 81 LBS
PH-HSR16 - Recommended for 14” Pile - 84 LBS
