HD Hoop Pile Guides (Rubber Roller)
Designed with a non-marking rubber roller for smooth movement along your dock pilings. Choose from 10", 12", 14", 16", or 18" sizes to perfectly match your needs. Built to last with a sturdy galvanized steel bracket and corrosion-resistant components. Simple to install using standard 1/2" dock fasteners.
- Mounting Angle: ¼” thick by varying lengths (18.5” to 26.5”)
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe
- Galvanized Coated

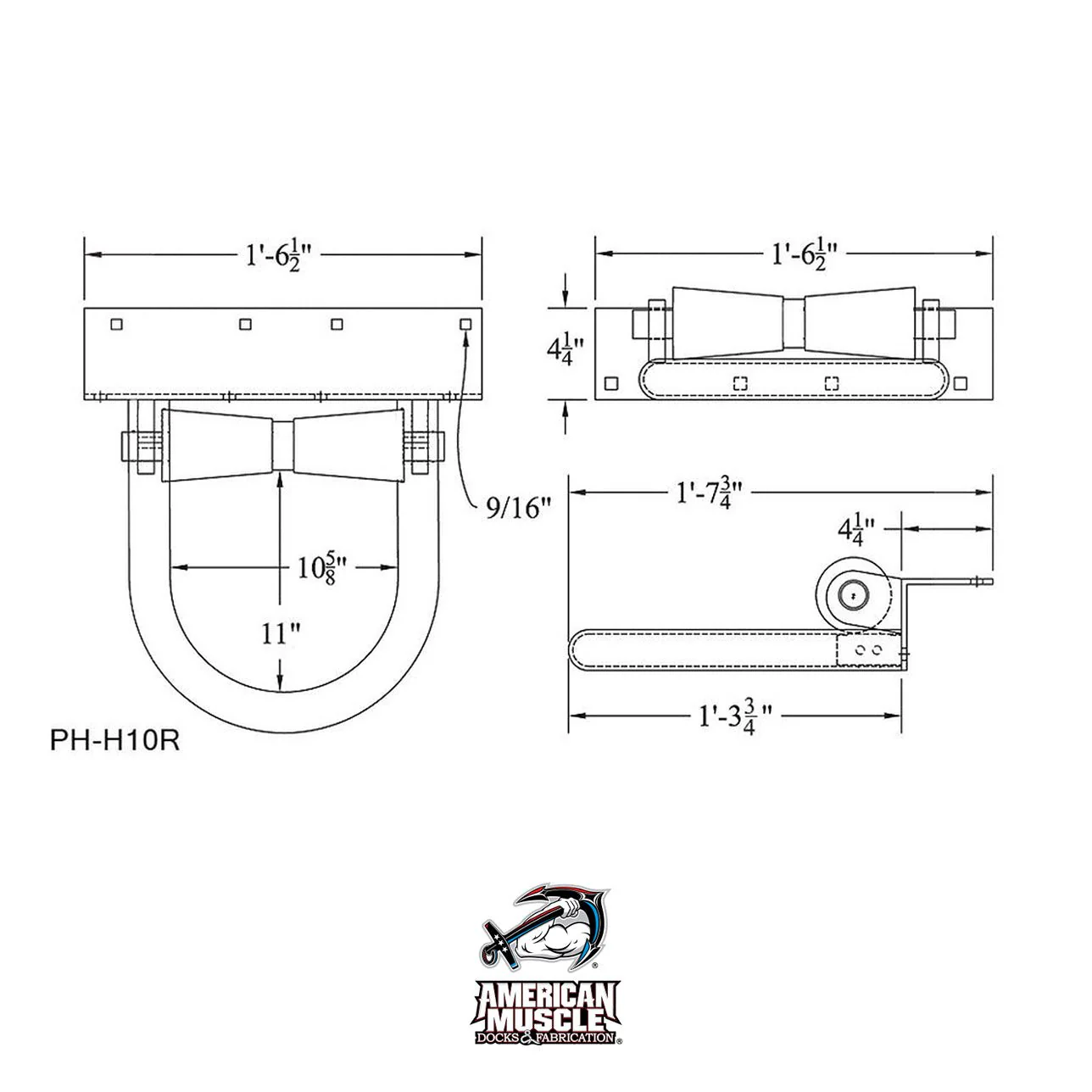

PH-H10R - Recommended for 8” Pile - 32 LBS
PH-H12R - Recommended for 10” Pile - 35 LBS

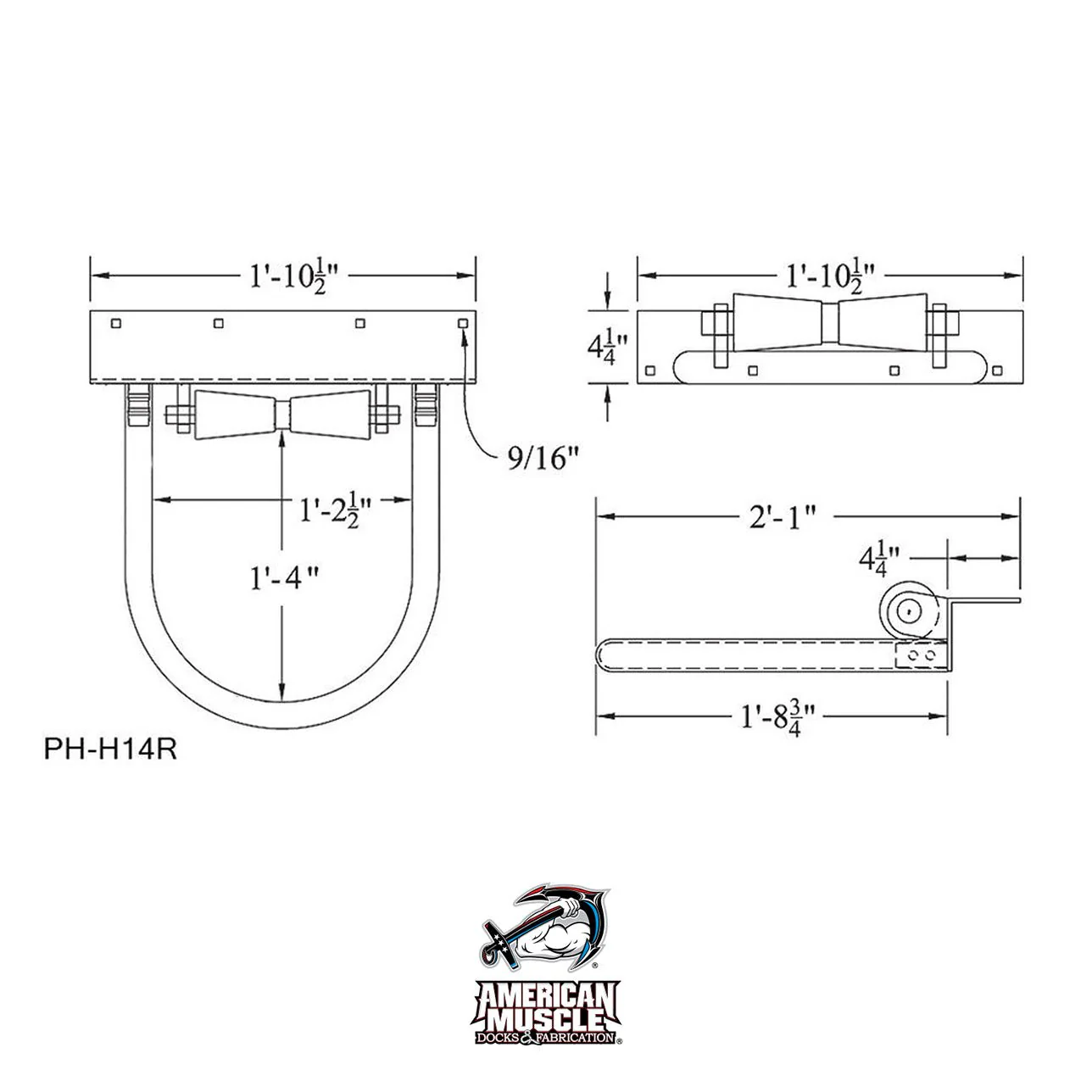

PH-H14R - Recommended for 12” Pile - 36 LBS
PH-H16R - Recommended for 14” Pile - 39 LBS

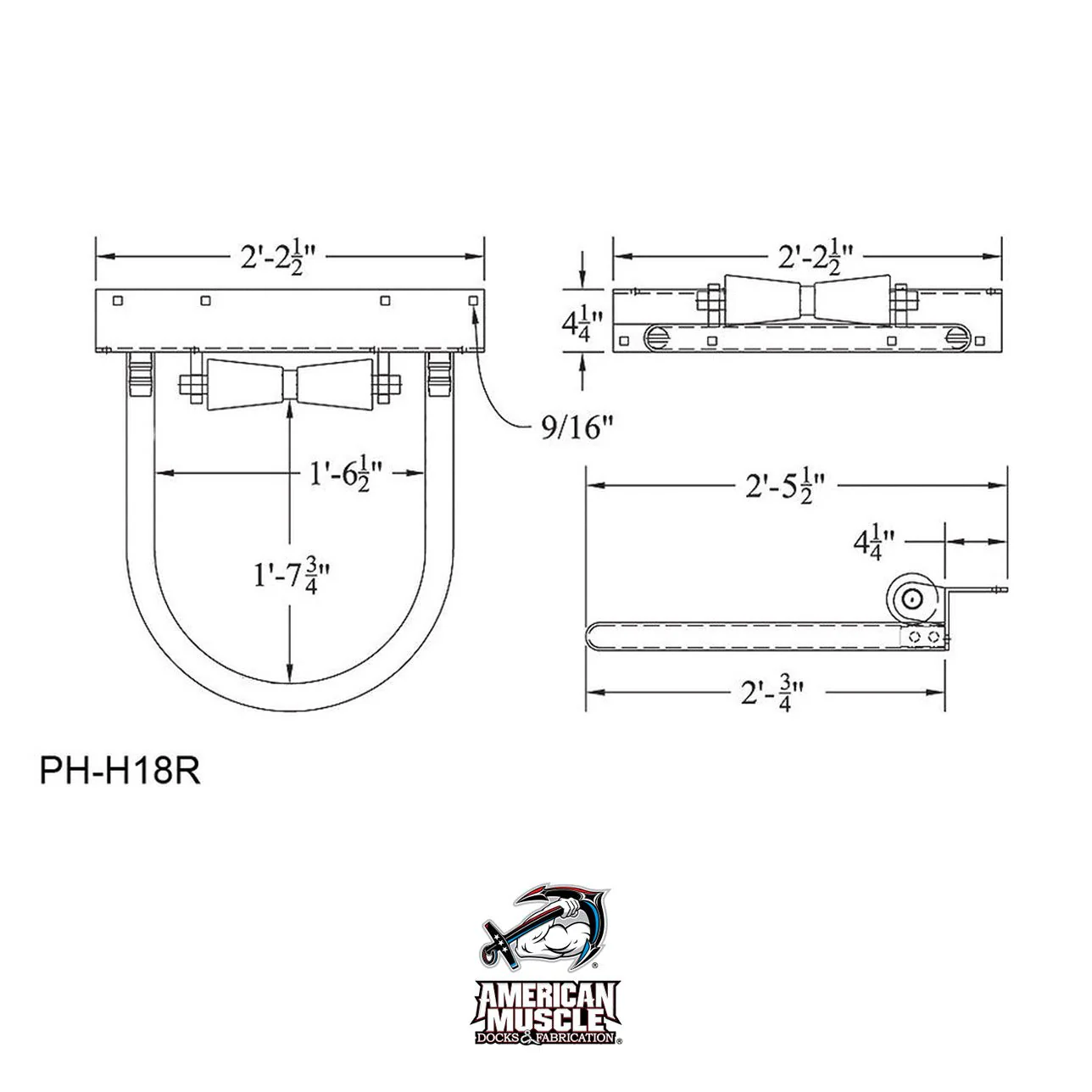

PH-H18R - Recommended for 16” Pile - 41 LBS
Original: $186.00
-65%$186.00
$65.10
Description
Designed with a non-marking rubber roller for smooth movement along your dock pilings. Choose from 10", 12", 14", 16", or 18" sizes to perfectly match your needs. Built to last with a sturdy galvanized steel bracket and corrosion-resistant components. Simple to install using standard 1/2" dock fasteners.
- Mounting Angle: ¼” thick by varying lengths (18.5” to 26.5”)
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe
- Galvanized Coated
PH-H10R - Recommended for 8” Pile - 32 LBS
PH-H12R - Recommended for 10” Pile - 35 LBS
PH-H14R - Recommended for 12” Pile - 36 LBS
PH-H16R - Recommended for 14” Pile - 39 LBS
PH-H18R - Recommended for 16” Pile - 41 LBS
