HD Square Hoop Pile Guides (Poly)

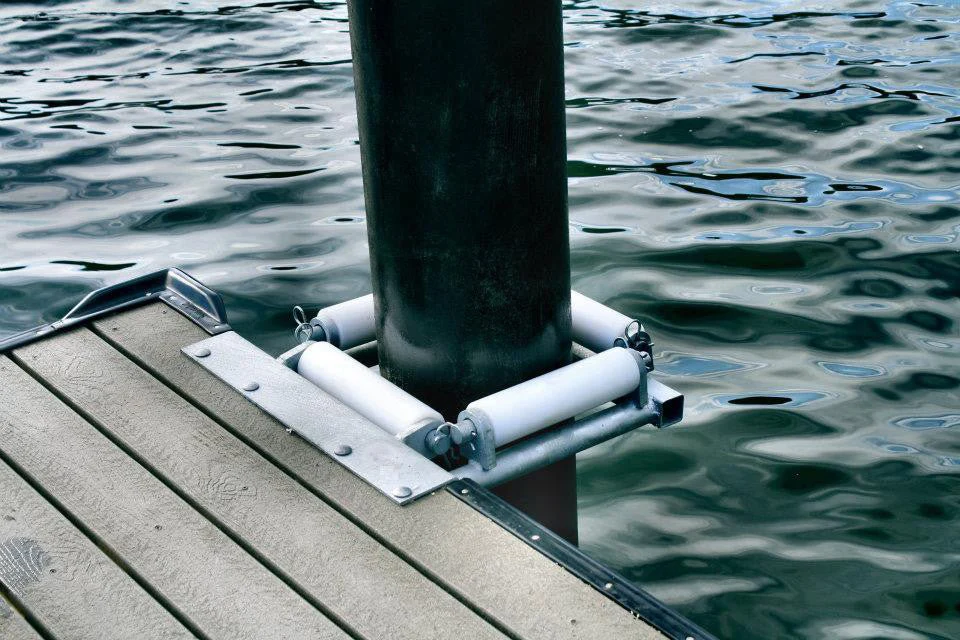

Our external square hoop pile guide, equipped with four non-marking poly rollers for effortless movement. Choose between the 14-inch model (ideal for 12" pilings) and the 16-inch model (perfect for 14" pilings). Built for durability and easy installation on your dock.
- Mounting Angle HSRP14: ¼” x 24.5”
- Mounting Angle HSRP16: ¼” x 26.5”
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe, 2” x 2” 3/16” Square Tubing
- Galvanized Coated

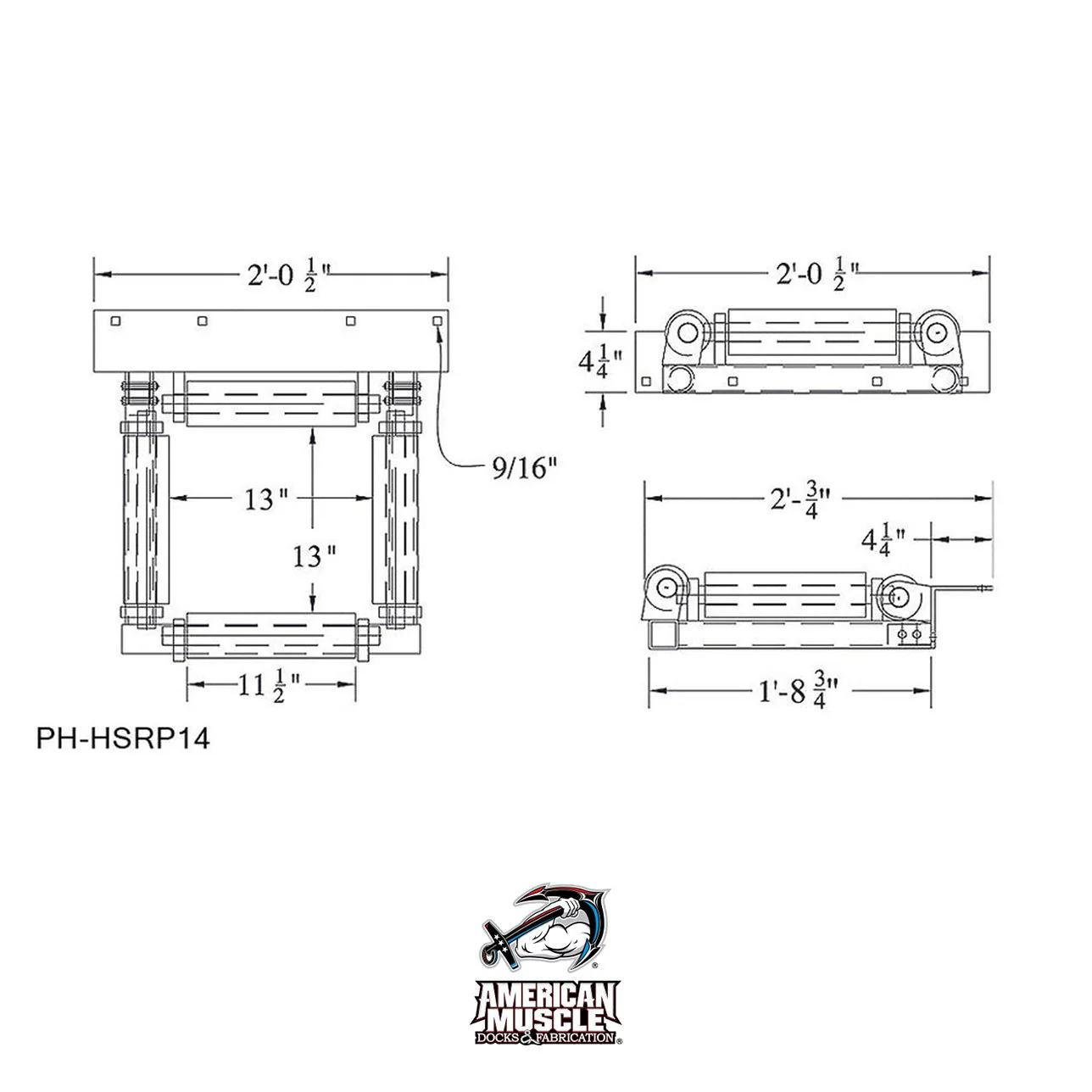

PH-HSRP14 - Recommended for 12” Pile - 78 LBS

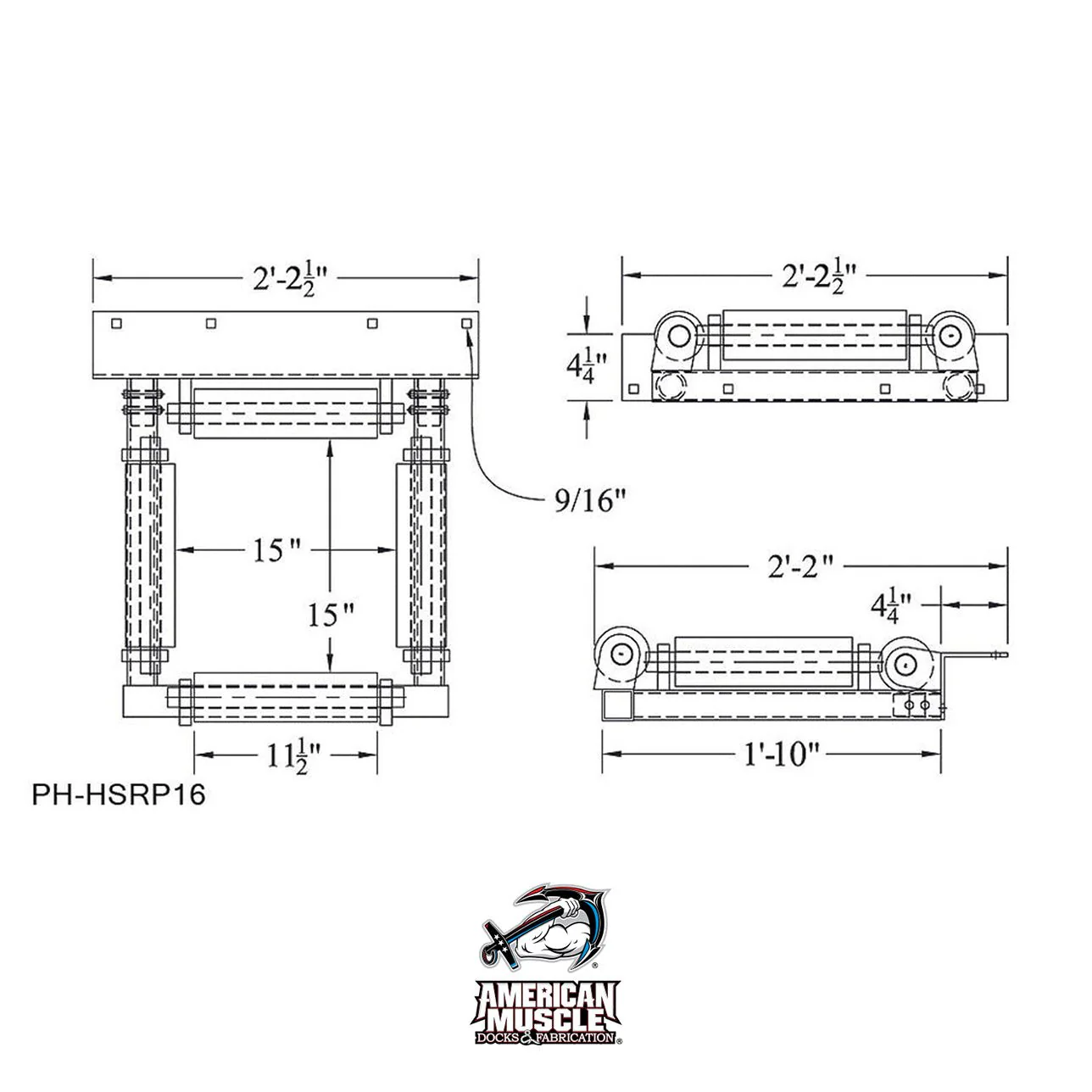

PH-HSRP16 - Recommended for 14” Pile - 81 LBS
Select Select Size
From $372.00
HD Square Hoop Pile Guides (Poly)—
$372.00
Description
Our external square hoop pile guide, equipped with four non-marking poly rollers for effortless movement. Choose between the 14-inch model (ideal for 12" pilings) and the 16-inch model (perfect for 14" pilings). Built for durability and easy installation on your dock.
- Mounting Angle HSRP14: ¼” x 24.5”
- Mounting Angle HSRP16: ¼” x 26.5”
- 4.25”x 4.25” Angle Legs
- 9/16” Square Mounting Bolt Holes
- ¾” Thick Roller Tabs
- Roller Shaft: 15” x 1.25” Solid
- Hoop Material: 1.5” Sch40 Pipe, 2” x 2” 3/16” Square Tubing
- Galvanized Coated
PH-HSRP14 - Recommended for 12” Pile - 78 LBS
PH-HSRP16 - Recommended for 14” Pile - 81 LBS
