Steel Truss Dock Light Duty Pile Hoops

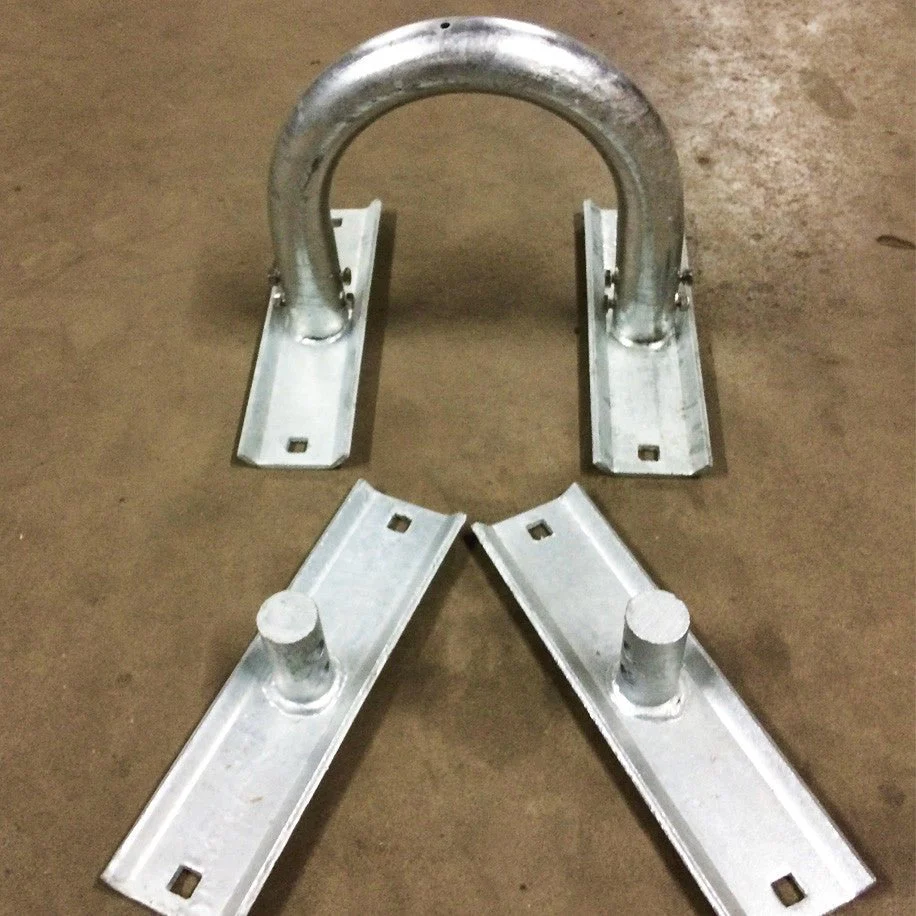

Our durable manufactured hoops provide a secure and straightforward attachment solution for steel truss frames. Each kit contains two durable mounting brackets and one robust hoop. Choose from sizes ranging from 6 inches to 18 inches. Price is determined by the size selected.

• ¼”x 3.375”x 12” Mounting Plates
• 9/16” Square Mounting Bolt Holes 10.5” Centers
• 1.5” Sch40 Pipe Hoop Material
• Galvanized Coated

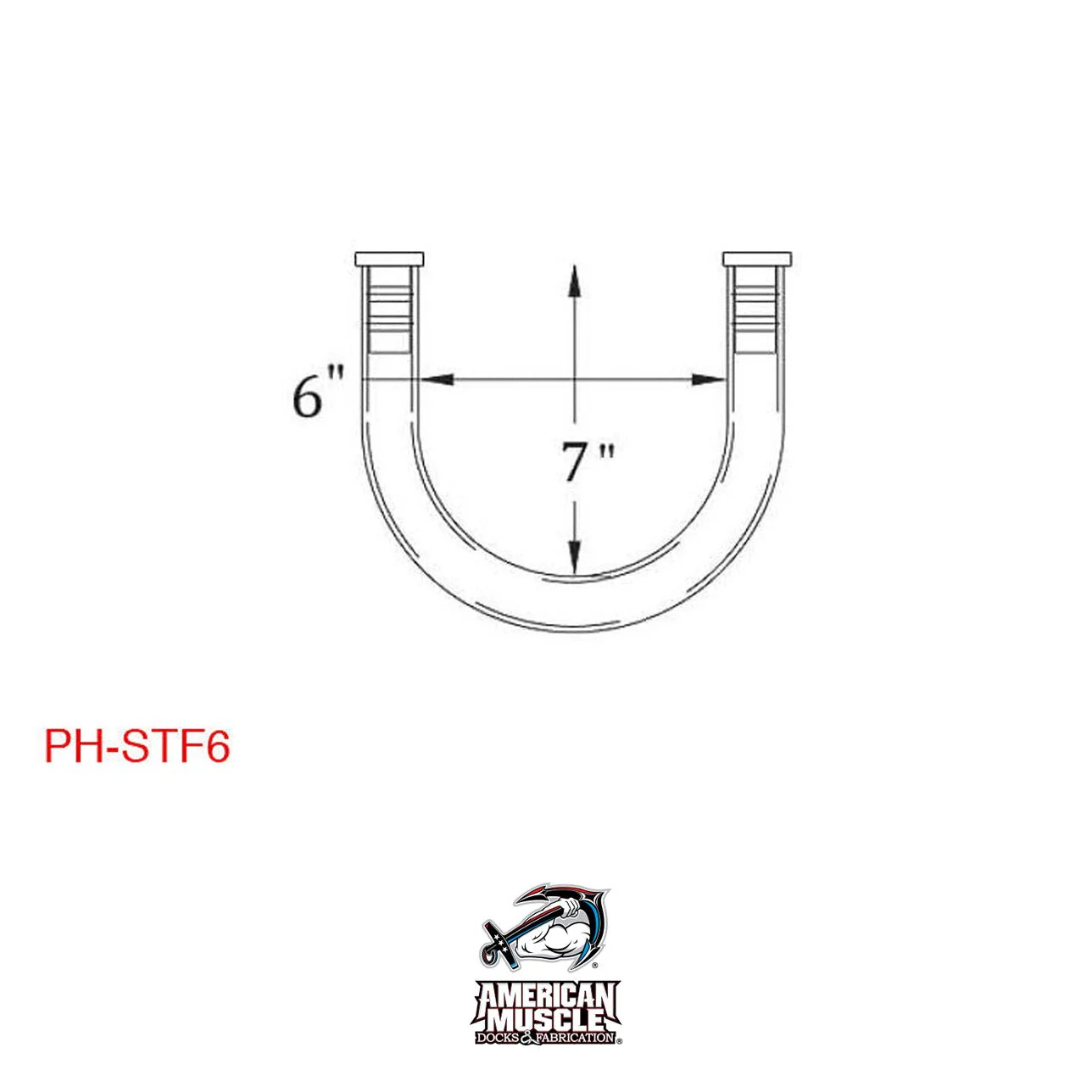

PH-STF6 - Recommended for 4” Pile - 11 LBS

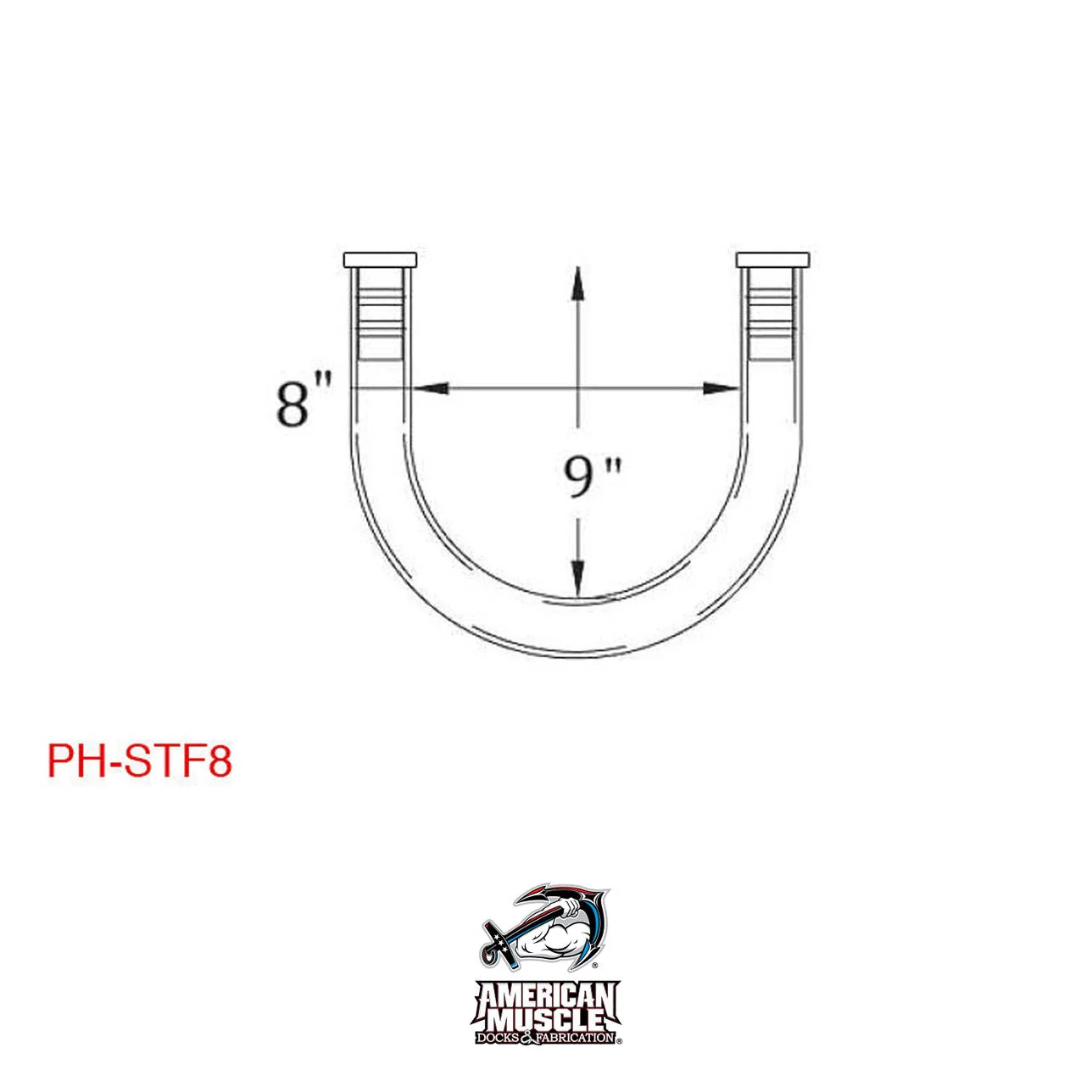

PH-STF8 - Recommended for 6” Pile - 13 LBS

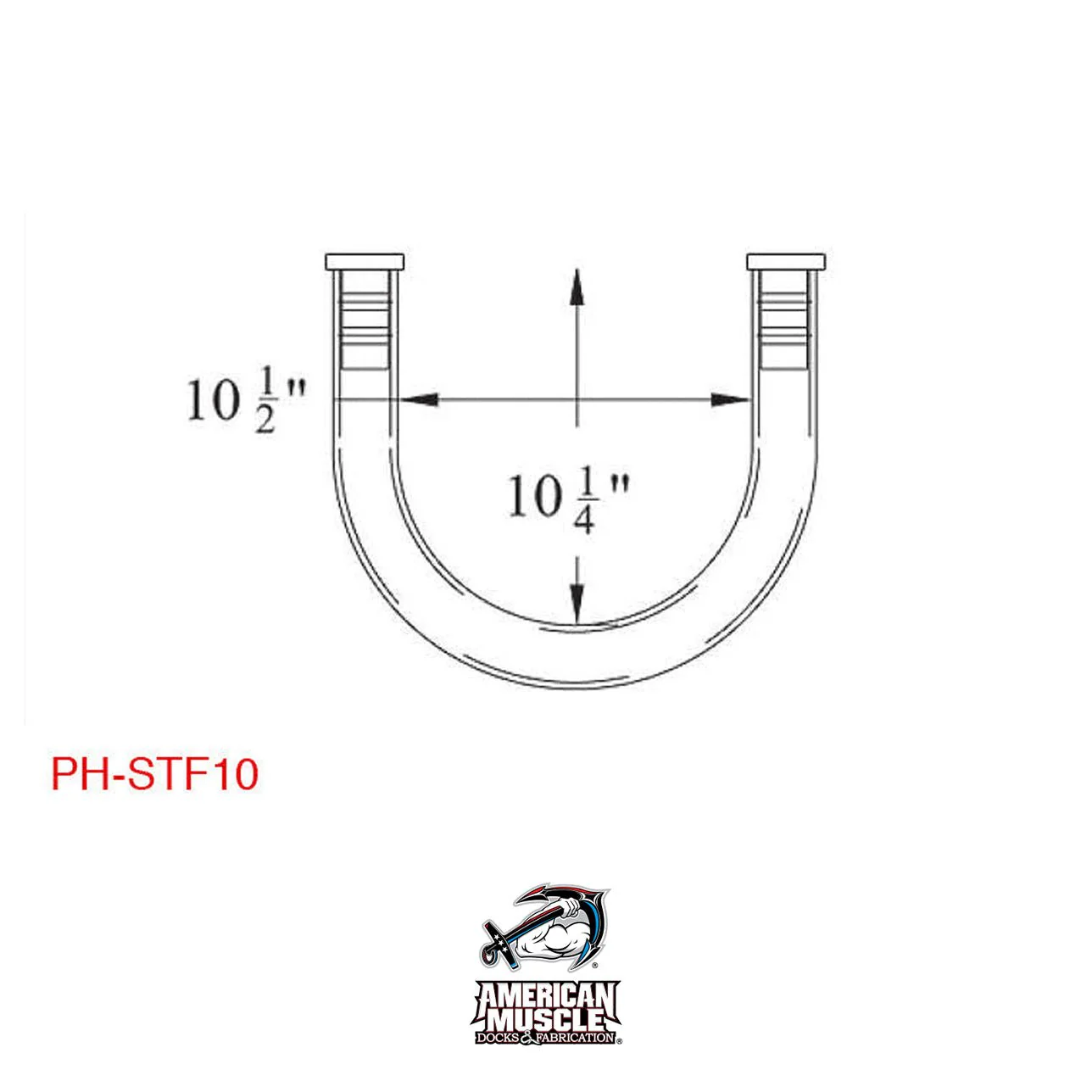

PH-STF10 - Recommended for 8” Pile - 15 LBS

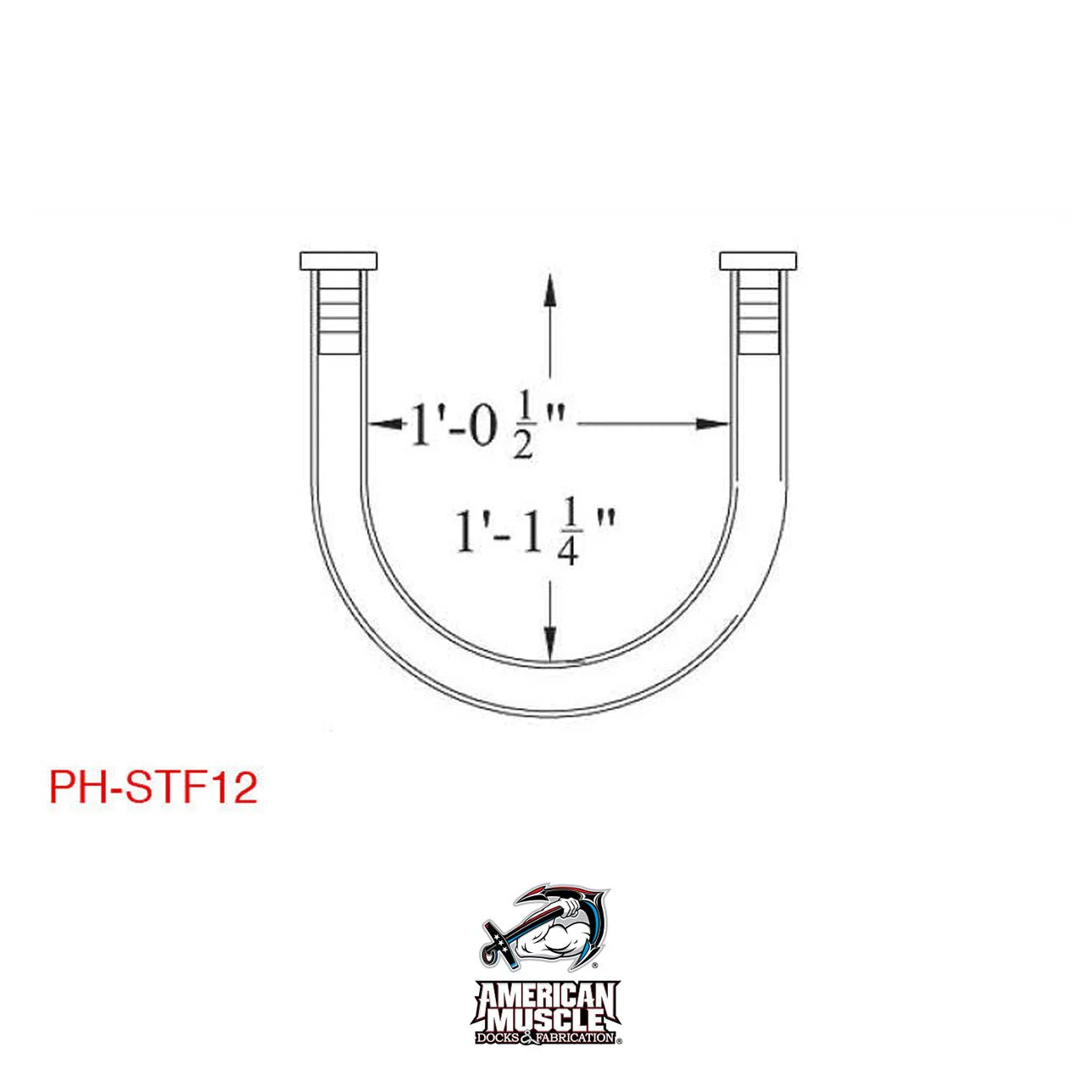

PH-STF12 - Recommended for 10” Pile - 17 LBS

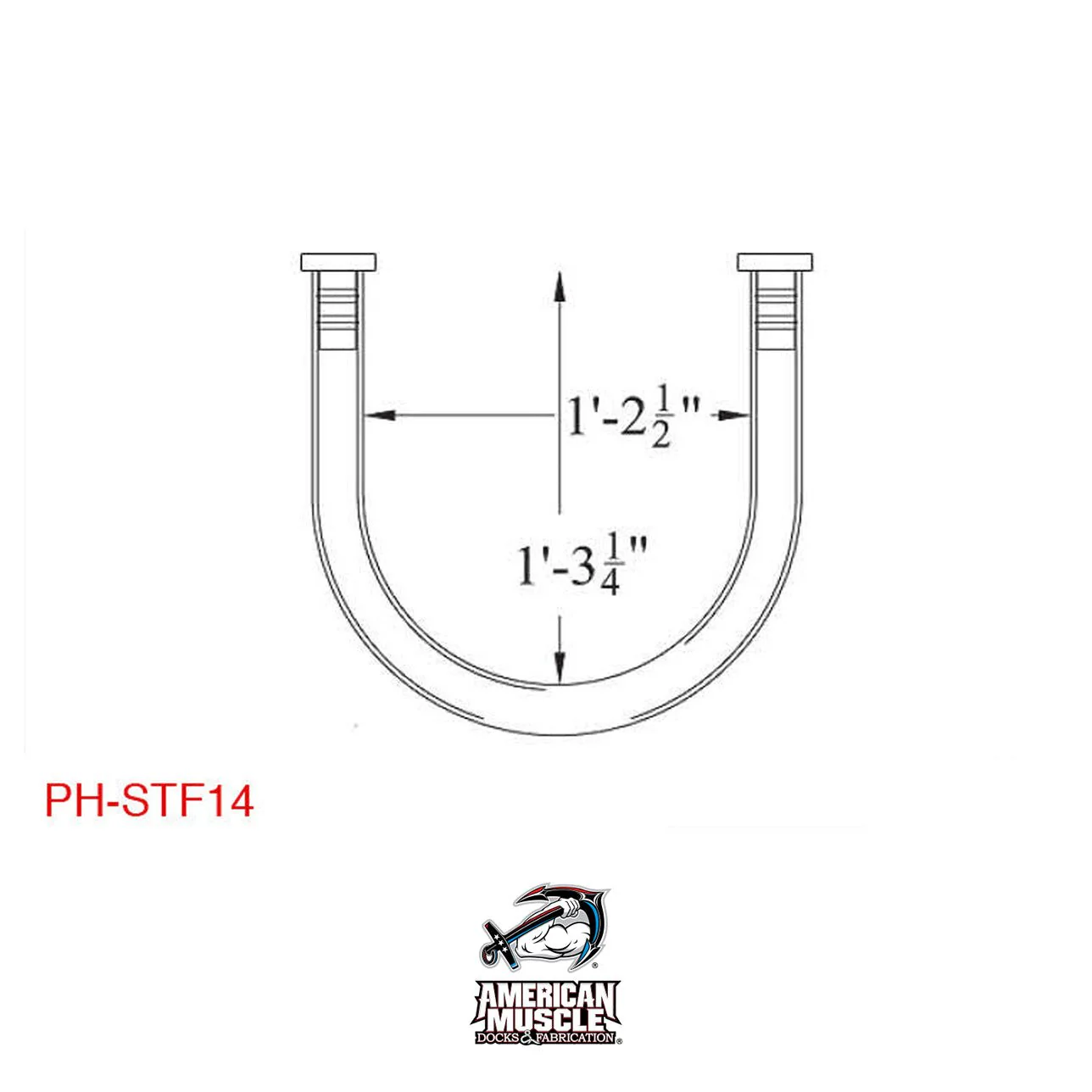

PH-STF14 - Recommended for 12” Pile - 19 LBS
PH-STF16 - Recommended for 14” Pile - 21 LBS
PH-STF18 - Recommended for 16” Pile - 23 LBS

Optional Roller Assembly or Rub Plate available.

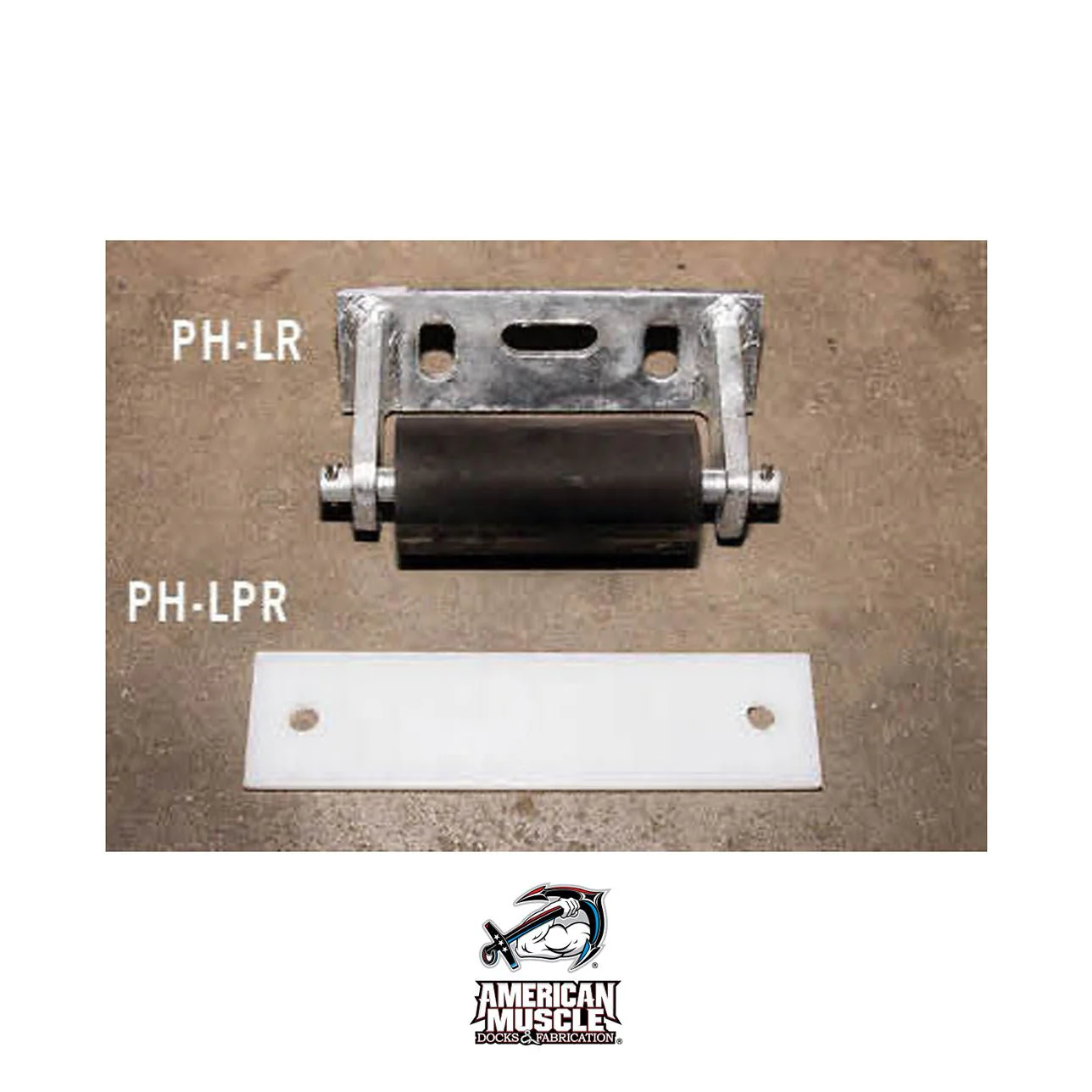

PH-LR - LIGHT PIPE HOOP ROLLER - 1.25 LBS
Light Roller is meant to attach on top of the dock while taking minimum space. It can be adjusted in-or-out to fit the different sizes of piling.

PH-LPR - LIGHT PILE PLASTIC RUB PLATE - .5 LBS
Plastic Rub Plate reduces friction and can easily attach to the face of the dock.
