Wood Dock Splice Plate Set

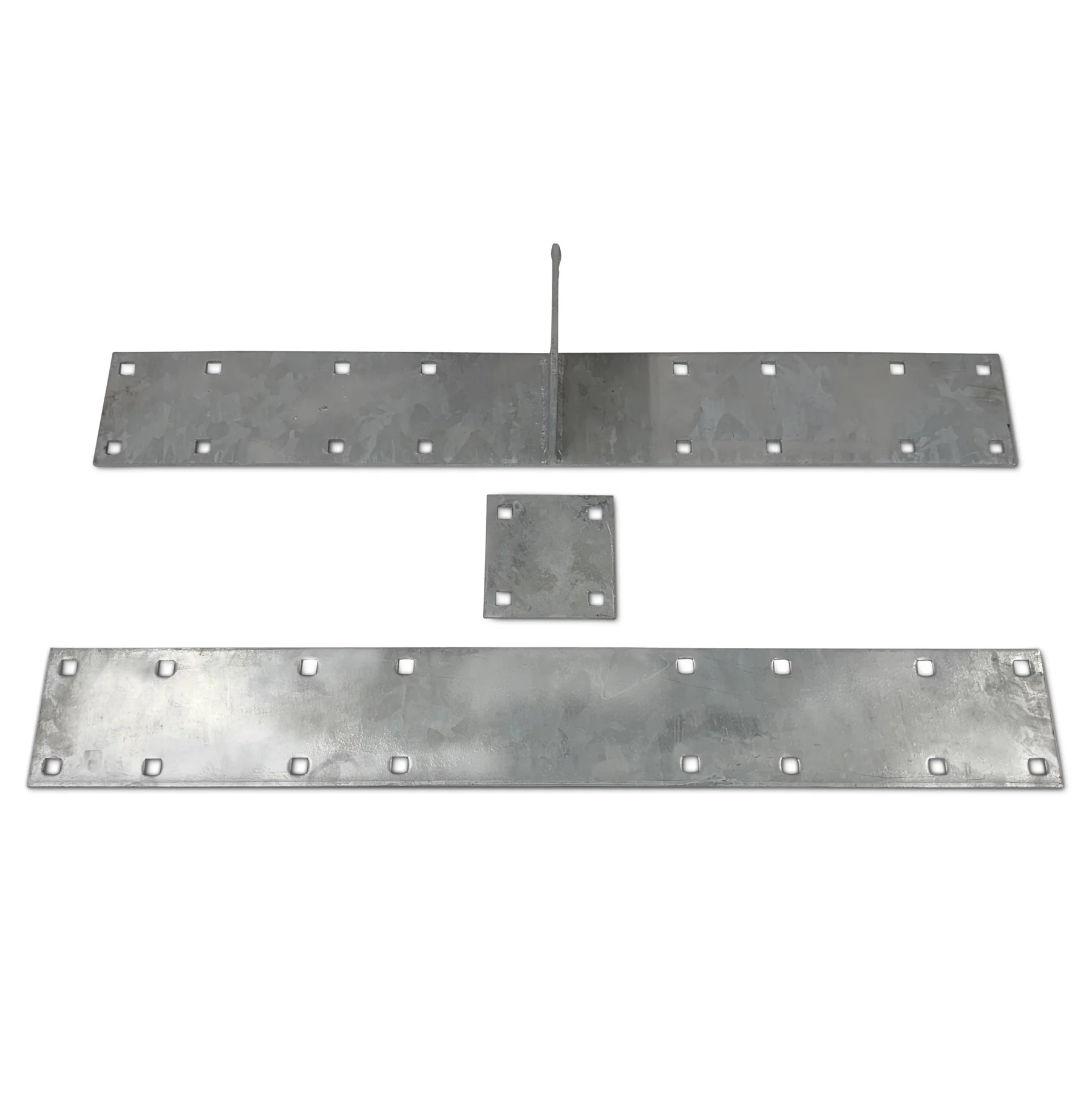

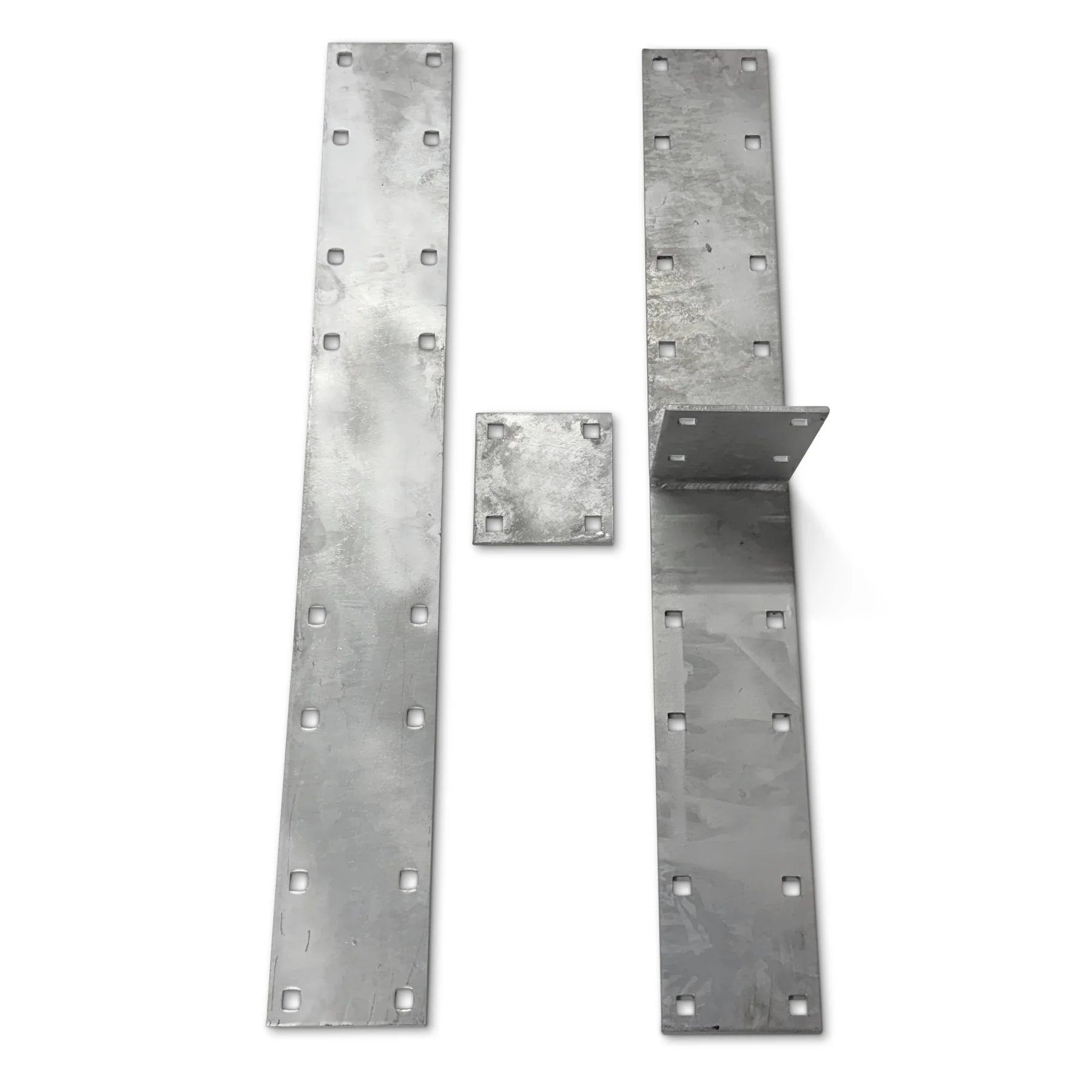

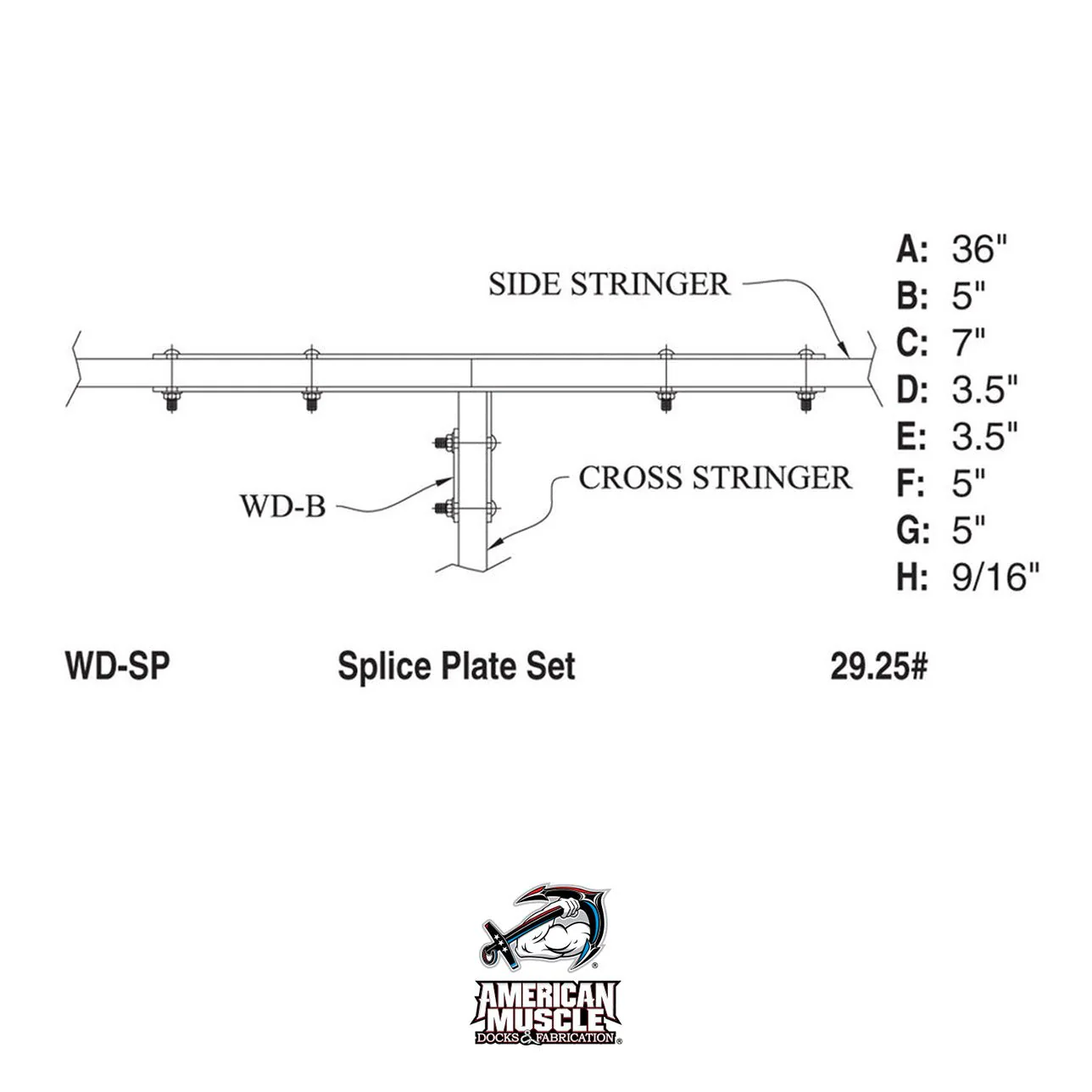

Splice Plates are designed to join two side stringers together to make longer dock sections. The flat plate is used on the outside of the stringer, and the T plate is used on the inside of the stringer. The T plate will attach to the cross stringer as shown. Set includes a flat plate and a T plate.

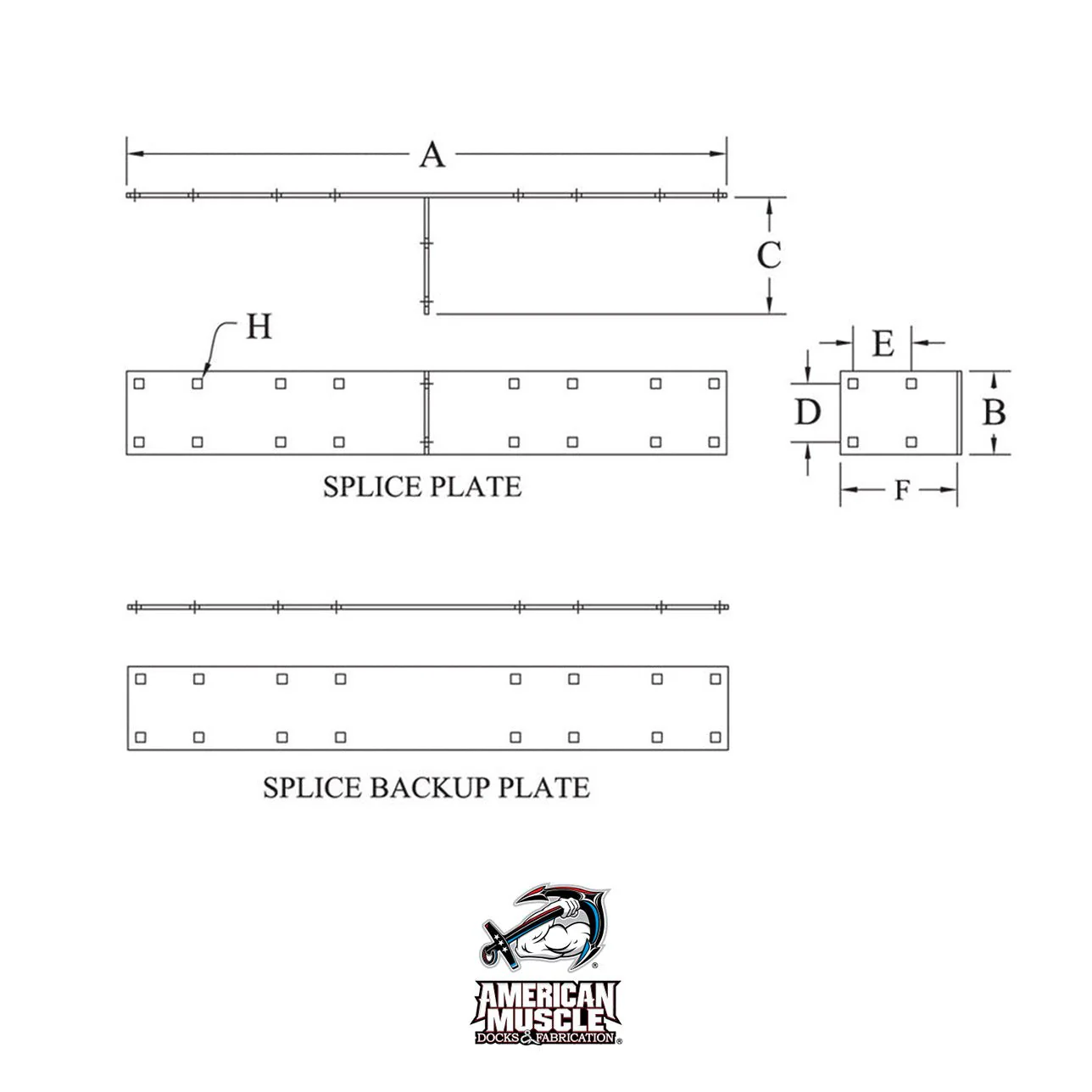

- ¼”x 36”x 5” Base Plate
- ¼”x 6.75”x 5” T Plate
- 9/16” Square Mounting Bolt Holes
- 4 set of 3.5”x 3.5” Bolt Hole Centers
- Galvanized Coated
Weight: 29.25 LBS
$84.00
Wood Dock Splice Plate Set—
$84.00
Description
Splice Plates are designed to join two side stringers together to make longer dock sections. The flat plate is used on the outside of the stringer, and the T plate is used on the inside of the stringer. The T plate will attach to the cross stringer as shown. Set includes a flat plate and a T plate.
- ¼”x 36”x 5” Base Plate
- ¼”x 6.75”x 5” T Plate
- 9/16” Square Mounting Bolt Holes
- 4 set of 3.5”x 3.5” Bolt Hole Centers
- Galvanized Coated
Weight: 29.25 LBS
