Wood Dock Ramp Roller Kit

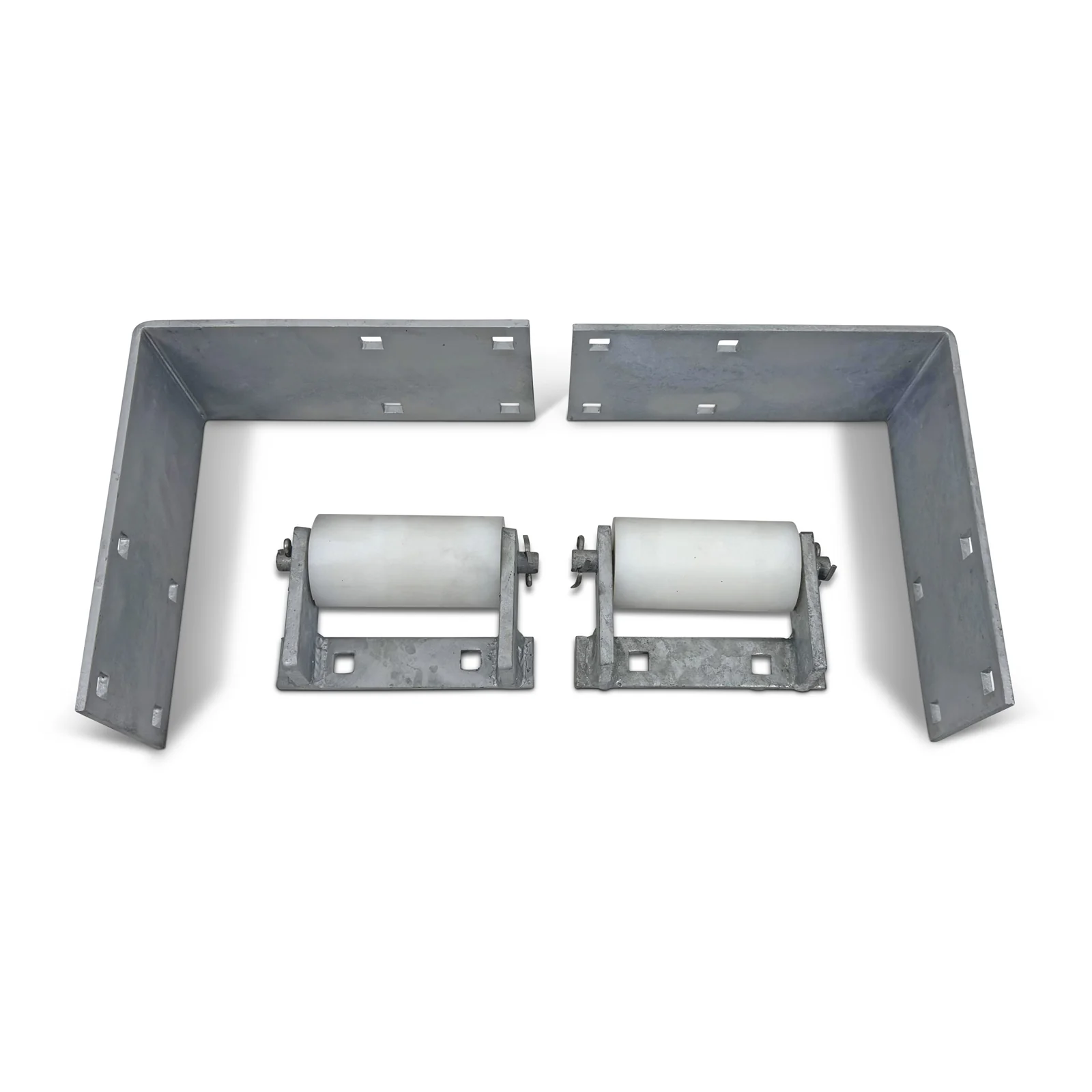

Building a roller ramp has never been easier using our ramp roller kits. The outside roller brackets are backed up with our standard WD-E Outside Corner Ends and the center roller bracket is backed by our WD-W Washer Plates. Rollers included.

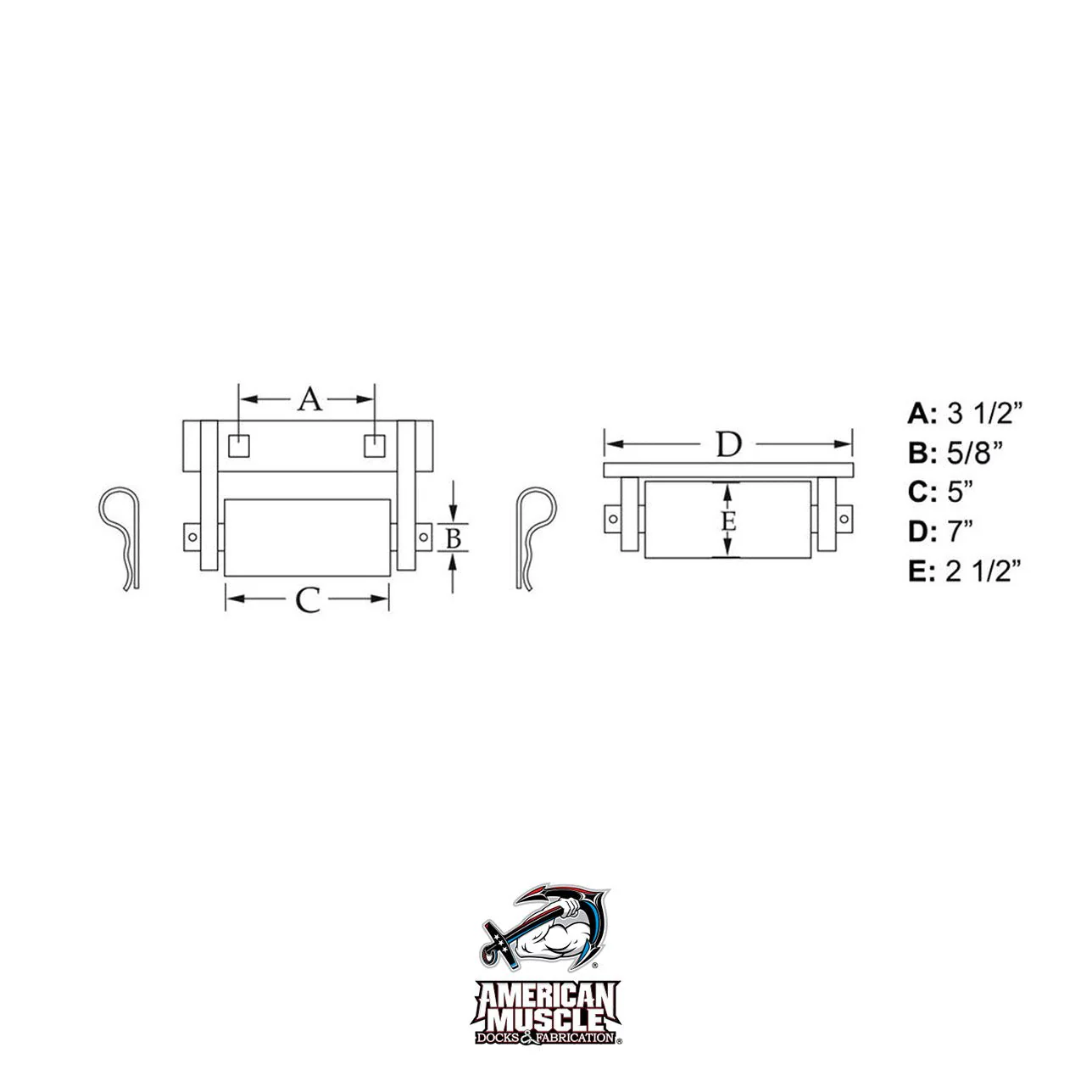

- ¼” Thick Base Plate 1.5”x 7”
- 3/8” Thick Tabs for Roller 2”x 3”
- 9/16” Square Mounting Bolt Holes
- 3.5” Bolt Hole Centers
- 5/8” Shaft for Roller
- 2.5”D x 5”L Roller
- Galvanized Coated
The WD-BAR34 is for 3' to 4' ramps and comes with two rollers and two outside corners.
The WD-BAR56 is for 5' to 6' ramps and comes with three rollers, two outside corners, and a washer plate.
Description
Building a roller ramp has never been easier using our ramp roller kits. The outside roller brackets are backed up with our standard WD-E Outside Corner Ends and the center roller bracket is backed by our WD-W Washer Plates. Rollers included.
- ¼” Thick Base Plate 1.5”x 7”
- 3/8” Thick Tabs for Roller 2”x 3”
- 9/16” Square Mounting Bolt Holes
- 3.5” Bolt Hole Centers
- 5/8” Shaft for Roller
- 2.5”D x 5”L Roller
- Galvanized Coated
The WD-BAR34 is for 3' to 4' ramps and comes with two rollers and two outside corners.
The WD-BAR56 is for 5' to 6' ramps and comes with three rollers, two outside corners, and a washer plate.
