Wood Dock Cleat Angle

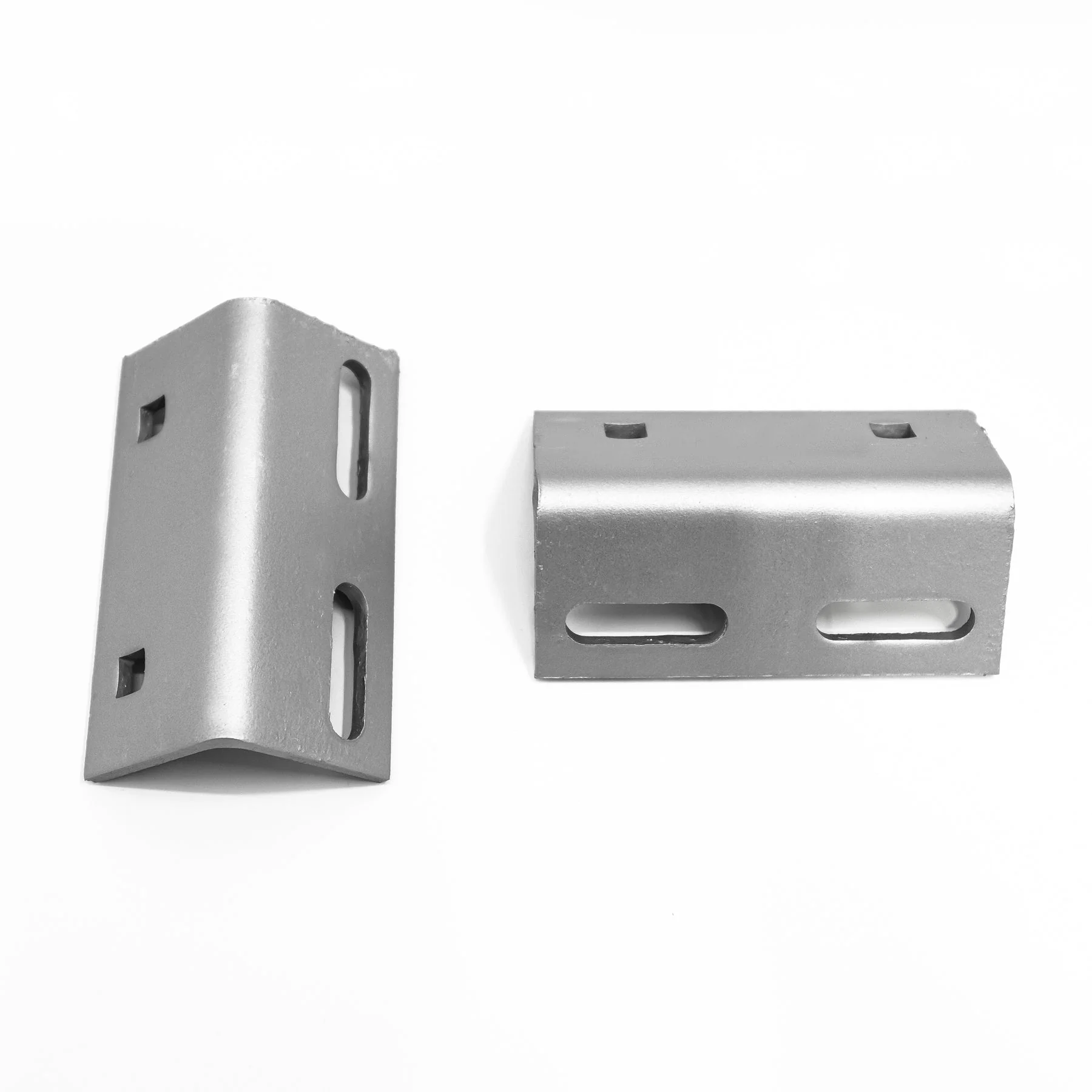

This robust cleat angle bracket is designed for secure dock cleat installation. Bolted to the inside of the side stringer and reinforced with a WD-W Washer Plate (used as a backup), this assembly ensures your cleat is firmly attached to the dock's framing, not just the deck board. The slotted holes accommodate various cleat sizes. We also offer an Extra Large Cleat Angle for cleats larger than 12 inches.

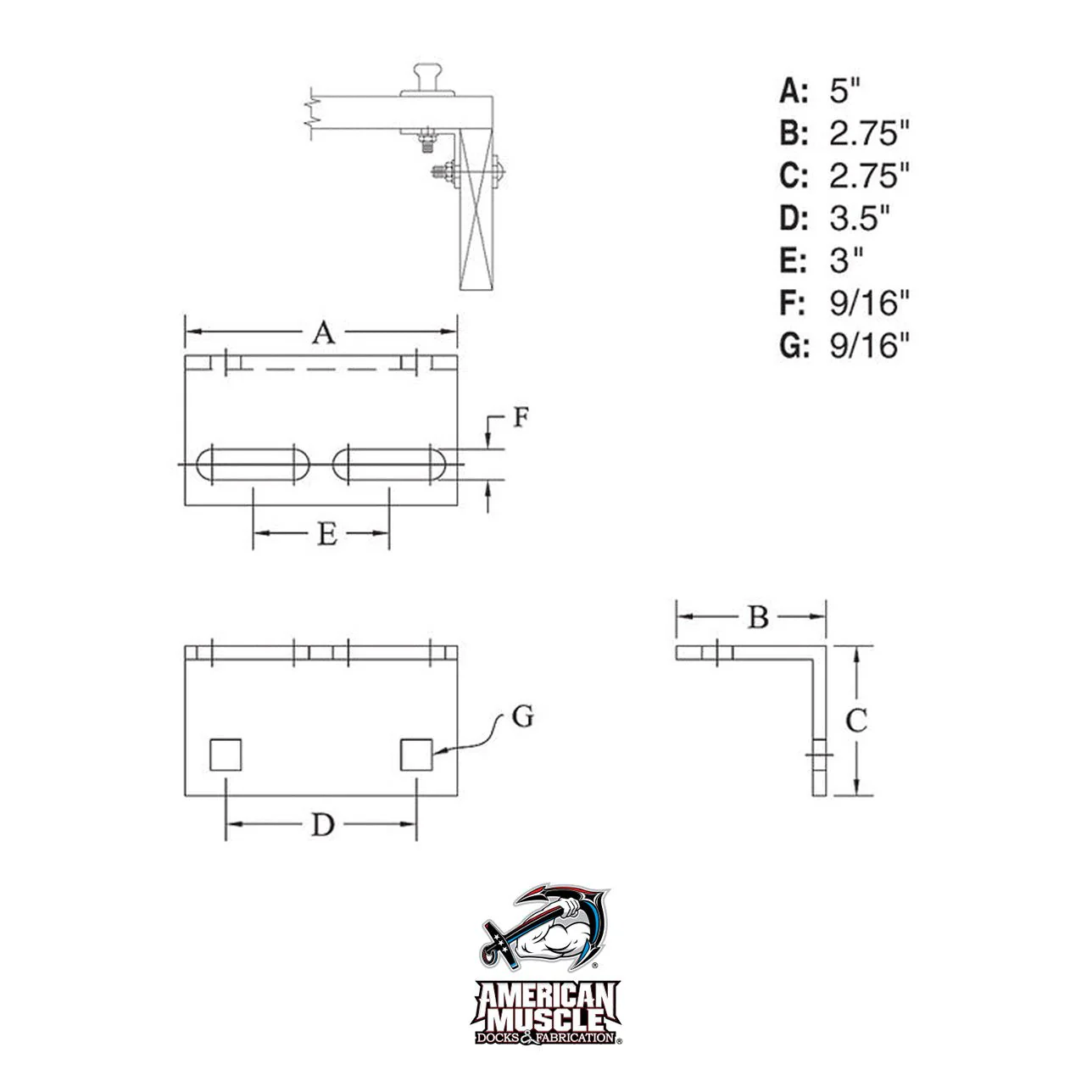

- ¼” Thick Plate
- 2(x) 9/16” Square Mounting Bolt Holes
- 2(x) 9/16”x1.5” Slotted Mounting Holes
- 2.75”x 2.75” Legs
- 5” Wide
- Galvanized Coated
Weighs 1.75 lbs
Sold Individually
Original: $7.00
-65%$7.00
$2.45
Description
This robust cleat angle bracket is designed for secure dock cleat installation. Bolted to the inside of the side stringer and reinforced with a WD-W Washer Plate (used as a backup), this assembly ensures your cleat is firmly attached to the dock's framing, not just the deck board. The slotted holes accommodate various cleat sizes. We also offer an Extra Large Cleat Angle for cleats larger than 12 inches.
- ¼” Thick Plate
- 2(x) 9/16” Square Mounting Bolt Holes
- 2(x) 9/16”x1.5” Slotted Mounting Holes
- 2.75”x 2.75” Legs
- 5” Wide
- Galvanized Coated
Weighs 1.75 lbs
Sold Individually
